Blackout blinds



KuroLok zipped edge blackout roller blind system


  • Zipped-edge fabric retention
  • 12 year warranty
  • Sizes up to 4m wide, 6m drop, 24m2
  • Includes headbox and slim side channels

System Detail

KuroLok features extruded aluminium headbox and slim side channels.  The blind fabric is locked into the side channels using zip technology.  The aluminium profiles are powder coated in white or black as standard, or any other RAL colour to order.

Headboxes are either 80mm, 100mm or 125mm high, depending on blind size.  The slim side channels are only 35mm wide.  A wider 56mm side channel is also available. We can also offer an ultra-slim 24mm wide channel for motorised KuroLok only.  Sturdy steel legs connect the headbox and side channels to create a rigid frame.  Universal profiles allow the frame to be fixed through the face, sides or top as required and all fixings are completely concealed.

KuroLok blinds can be operated manually via chain or crank handle, or motorised with many control options available.  Motors with obstacle detection are also available for added safety.

Uses & Applications

Zipped-edge fabric retention is what sets KuroLok apart.  This removes the challenge, and associated maintenance issues, of fabric coming out of the side channels on traditional blackout and cassetted blinds.

The fabric being fully retained down both sides also allows for blinds to installed at up to 30o off the vertical and still function perfectly; an ideal solution for sloping glazing.  The headbox and side channels can also be recessed into walls or ceilings for the ultimate built-in look.

KuroLok blinds are simple and fast to install and are robustly built to provide a maintenance-free blind.  With all fixings concealed and slim side channels securely guiding the fabric, any roller blind can be enhanced by KuroLok.  It’s not only for blackout; a wide range of fabrics can be used with this system.

Using the same controls as our Helios system, KuroLok can be motorised or operated manually via chain or crank handle.  With the ability to cover an incredible 24m2 in a single blind, KuroLok is an outstanding performer for your shading or room darkening requirements.

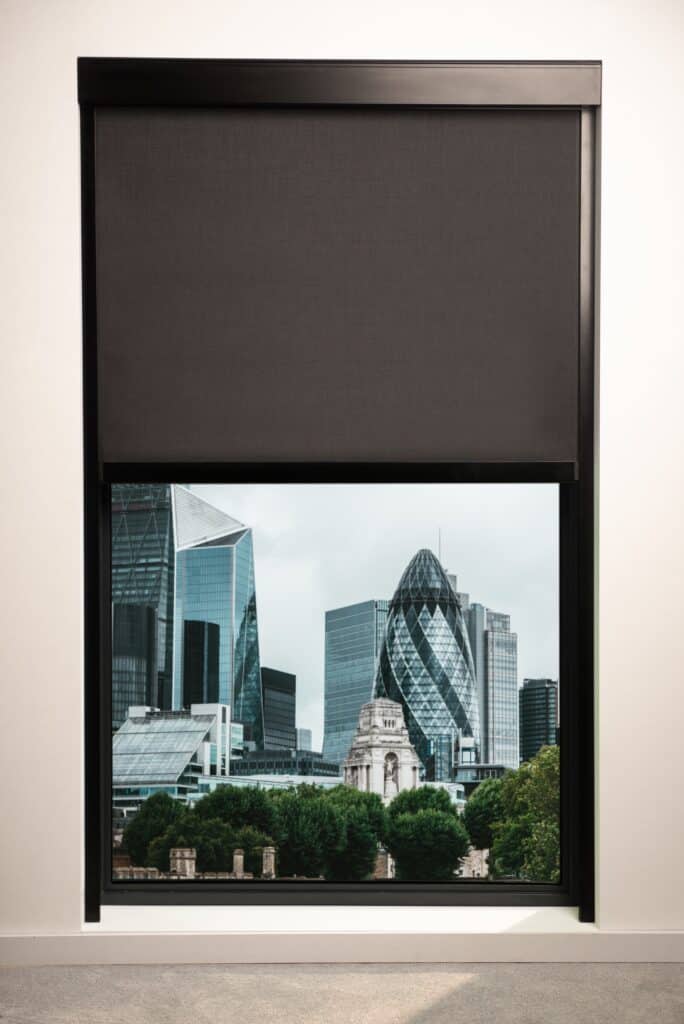

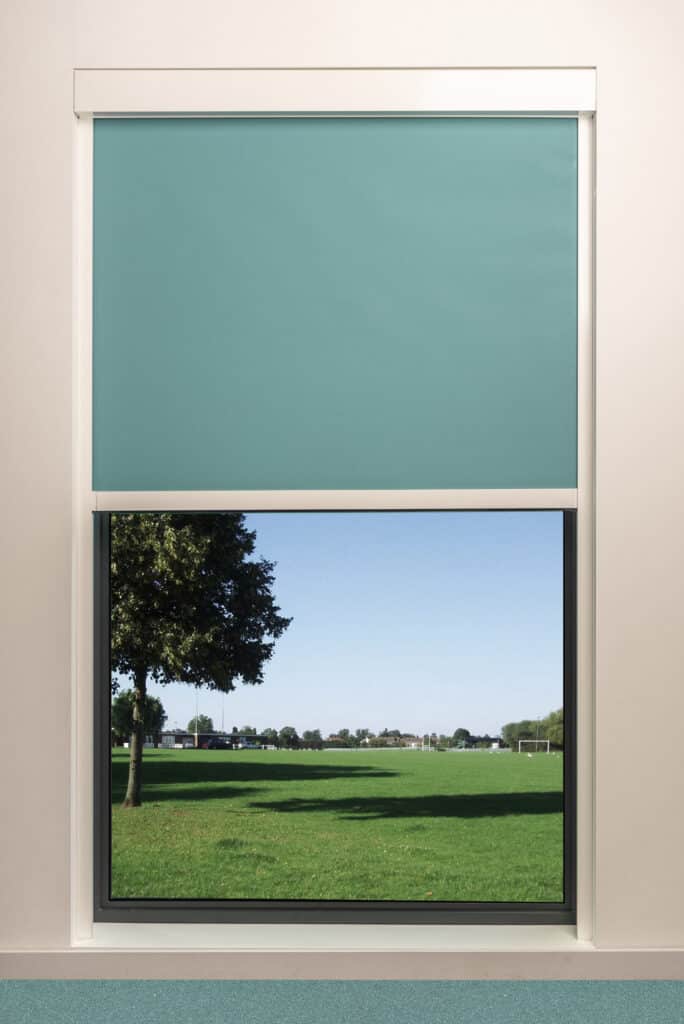

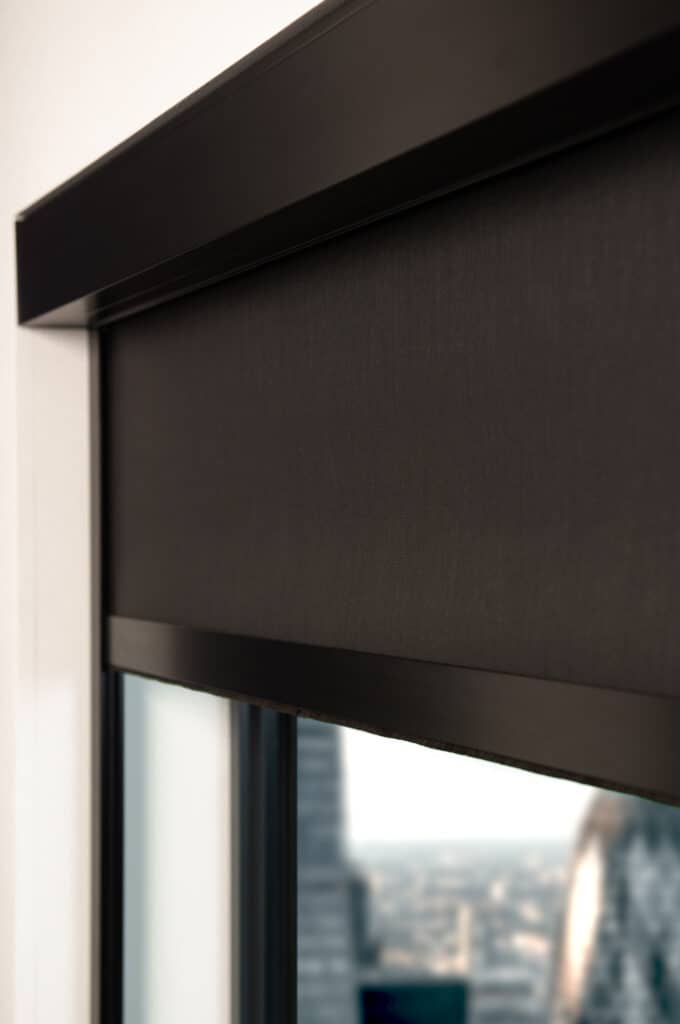

KuroLok zipped edge blackout roller blind system

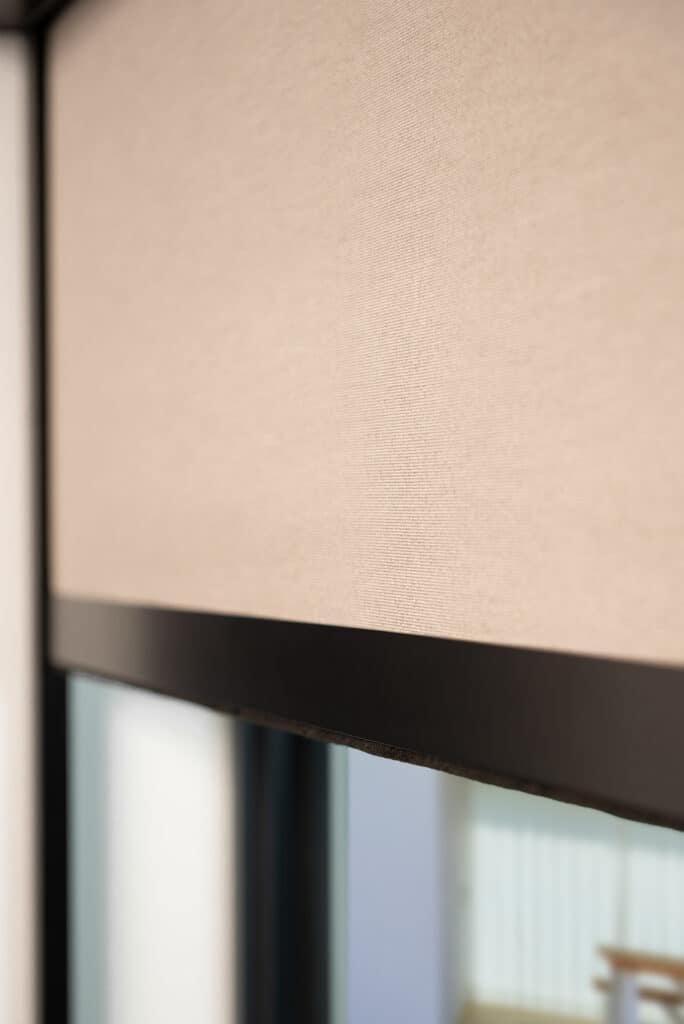

KuroLok zipped edge blackout roller blind system fabric pocket hembar

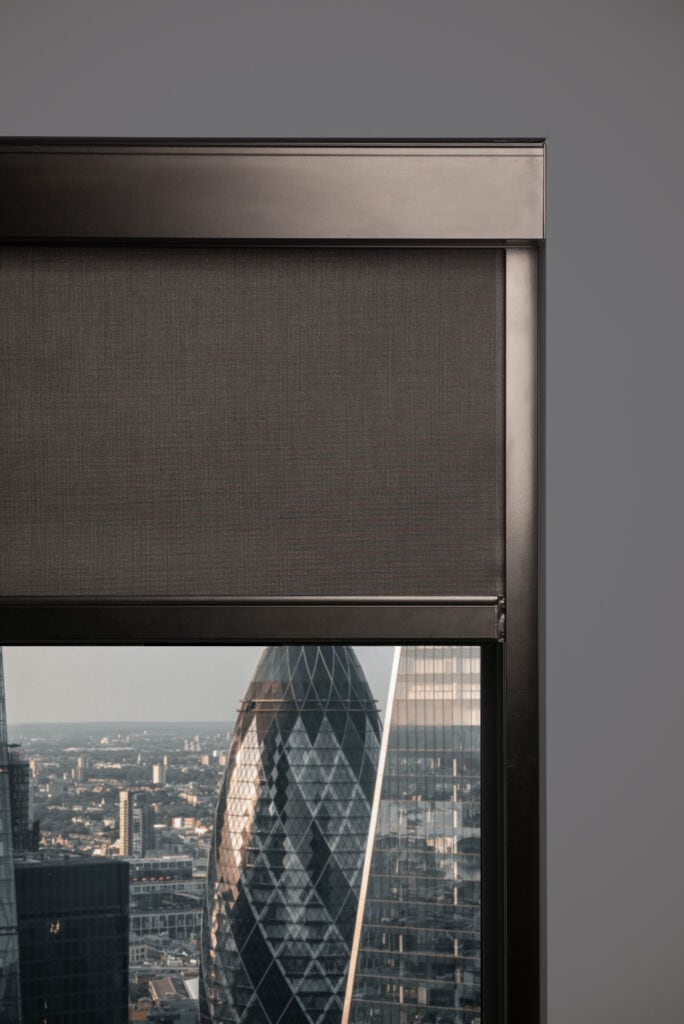

KuroLok zipped edge blackout roller blind system 35mm channel

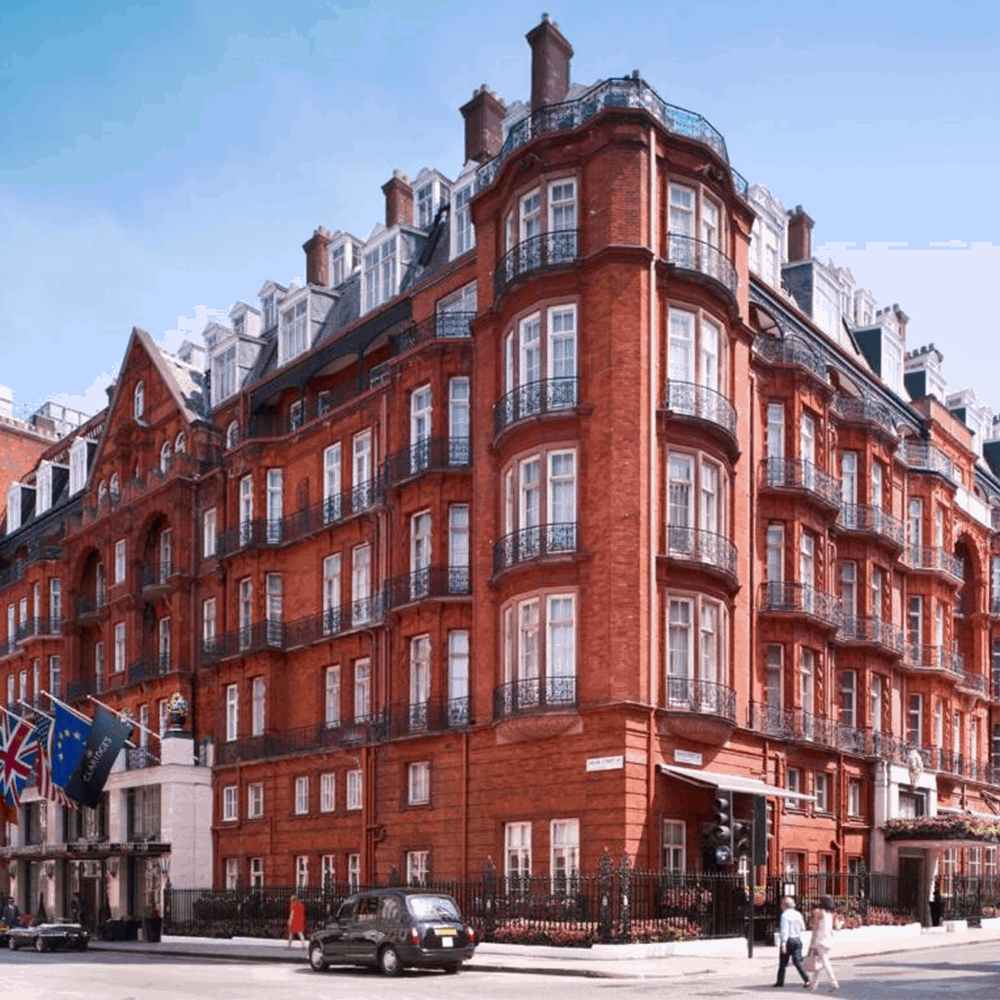

ICC Wales 1
ICC Wales 2
grey kurolok side channel

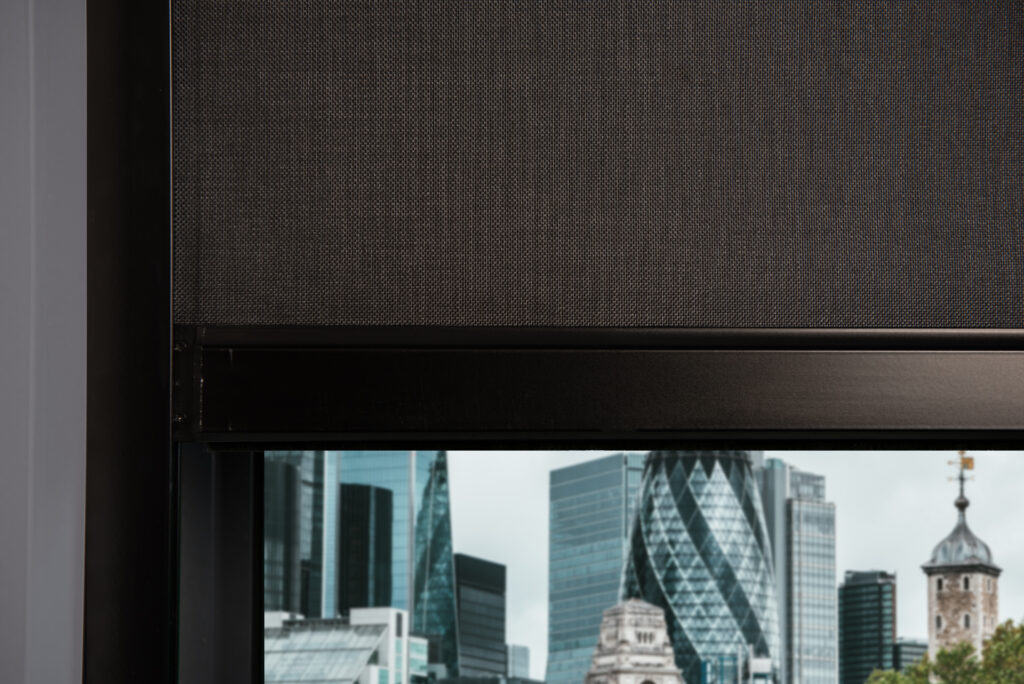

Hem bar and side channel


Automation Options

KuroLok blinds can be powered using 240V, 24V or battery motors.  Hardwired or wireless controls can be stand-alone or fully integrated with home automation or building management systems (BMS).

Intelligent digital motors are IP addressable and can be integrated with many control systems such as Control4, Crestron, Lutron, etc; and with protocols such as KNX, LON, BACNet, Modbus, Z-Wave, etc.

Just tell us what you need.  We’re here to help you create the perfect solution for your requirements.

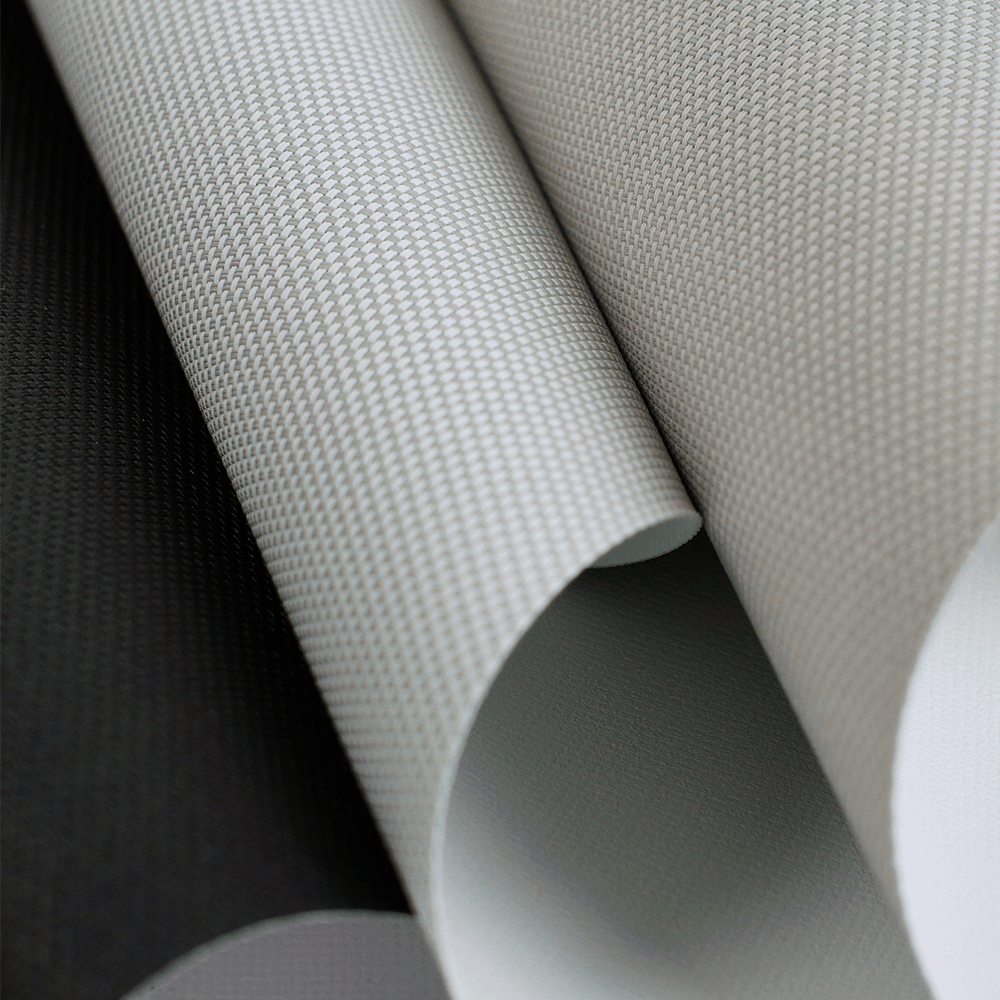

Fabric Options

KuroLok can be used with a substantial range of fabrics to create the optimum level shading or blackout. The Spectrum range of durable flame retardant roller blind fabrics has something suitable for most requirements.  The fabrics from the Spectrum range which are recommended for use with KuroLok are:

  • Spectrum 1010 PVC blackout
  • Spectrum 1050 screen blackout
  • Spectrum 1040/1045 fabric faced blackouts
  • Spectrum 4060 silver-backed 3% screen
  • Spectrum 5010 1%, 3%, 5%, 10% open screens
  • Spectrum 5030 contract 3% open screen

Of course, you are not limited to using a fabric from the Spectrum range.  We have access to hundreds of beautiful high performance fabrics and the list is always growing; we are keen to work with you to find the perfect one.

Still not sure what fabric is right for your project?  Our wealth of knowledge and support is here for you: contact us to have a chat!
