KuroLok RL zipped edge twin rooflight blind system

Overview

  • Meet-in-the-middle tensioned rooflight system
  • Zipped-edge fabric retention
  • 5 year warranty
  • Sizes up to 3.6m wide, 6m drop, 18m2
  • Includes headboxes and slim side channels

System Detail

KuroLok Twin RL system harnesses a pair of KuroLok RL blinds running in the same side channels, drawing from opposite ends to meet in the centre of large openings, up to 6m.

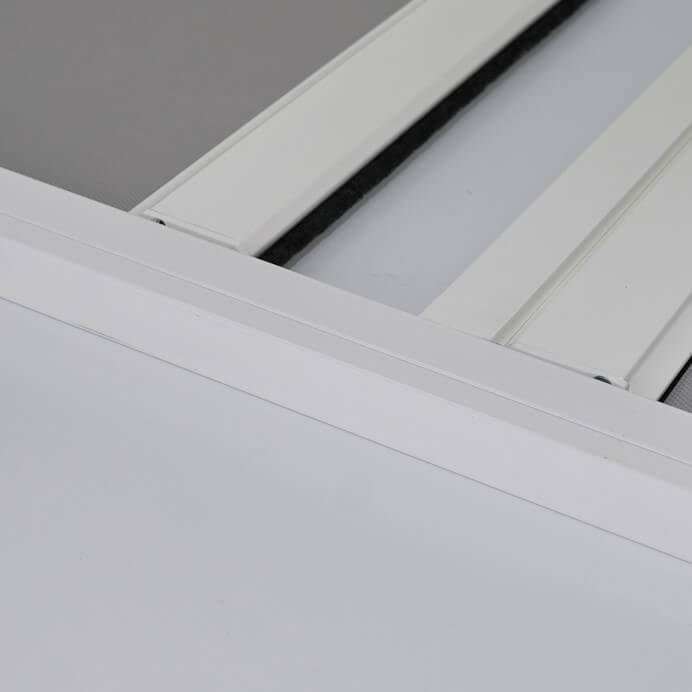

Featuring the same extruded aluminium 100mm headboxes and slim 35mm side channels as KuroLok RL, the Twin system has two headboxes at each end of the blind.  The aluminium profiles are powder coated in white or black as standard, or any other RAL colour to order.

The blind fabric is locked into the side channels using zip technology and tensioned via powerful constant-tension spring (CTS) units.  Sturdy steel legs connect the headbox and side channels to create a rigid frame.  Universal profiles allow the frame to be fixed through the top, face or sides as required, and all fixings are completely concealed.

KuroLok Twin RL blinds can only be operated via 240V motors, with multiple control options available.  The two halves can be controlled independently, or as one.

Uses & Applications

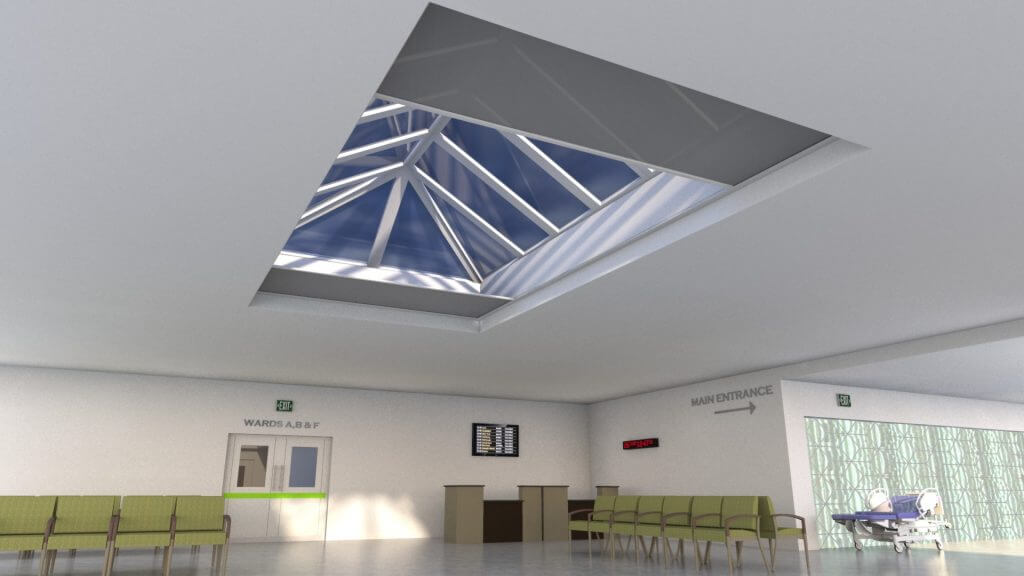

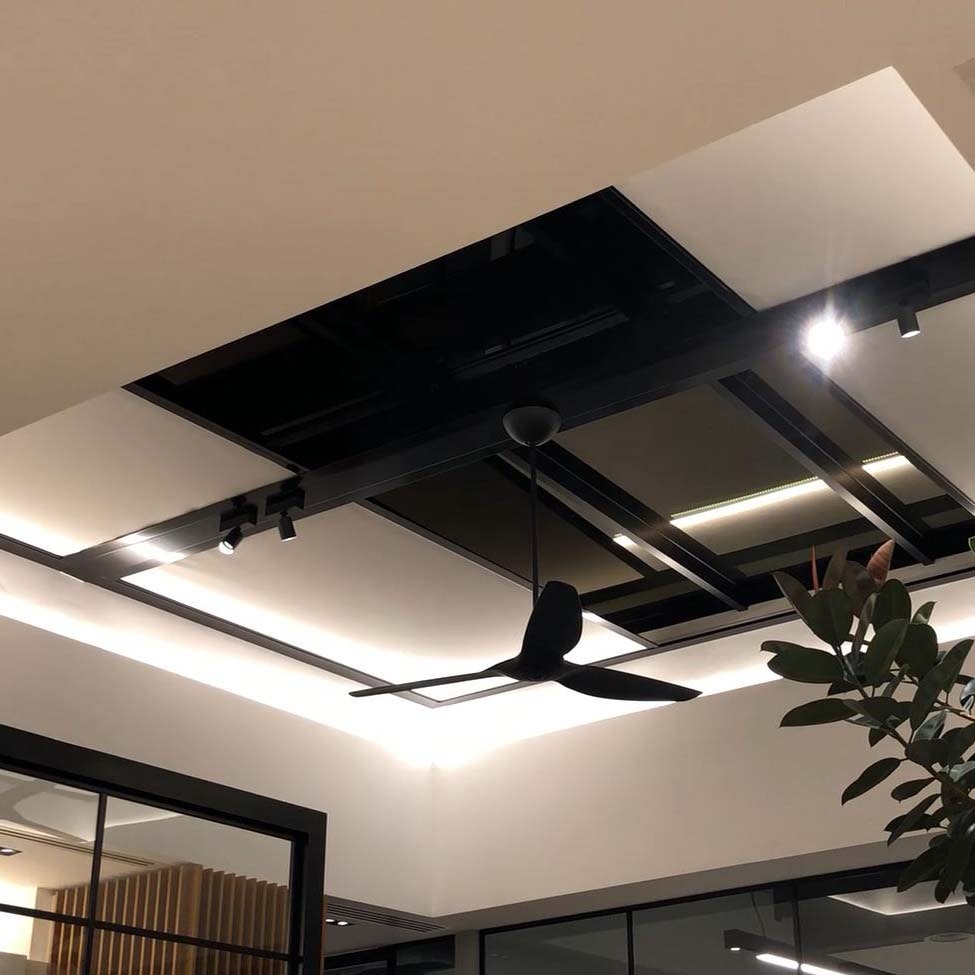

For large rooflights, atria, orangeries, etc, KuroLok Twin RL offers a unique solution.  It spans up to 6m with a cost-effective system that has the same neat appearance and ease of installation as the standard KuroLok RL.

The ability to operate the two halves separately offers maximum versatility for controlling the light penetrating a space to maintain a pleasant and comfortable environment.

KuroLok Twin RL blinds are faster and easier to install than comparable systems.  L-angle profiles can be supplied to create a simple and beautiful installation.

Motorised operation makes it easy to control your KuroLok Twin RL blinds from anywhere.  A wide range of shading or blackout fabrics can be used with this system to create just the right ambience whatever the application.

Automation Options

KuroLok Twin RL blinds can be powered using 240V motors.  Hardwired or wireless controls can be stand-alone or fully integrated with home automation or building management systems (BMS).

Intelligent digital motors are IP addressable and can be integrated with many control systems such as Control4, Crestron, Lutron, etc; and with protocols such as KNX, LON, BACNet, Modbus, Z-Wave, etc.

Just tell us what you need.  We’re here to help you create the perfect solution for your requirements.

Fabric Options

KuroLok Twin RL can be used with a substantial range of fabrics to create the optimum level shading or blackout. The Spectrum range of durable flame retardant roller blind fabrics has something suitable for most requirements.  The fabrics from the Spectrum range which are recommended for use with KuroLok RL are:

  • Spectrum 1050 screen blackout
  • Spectrum 5010 1%, 3%, 5%, 10% open screens
  • Spectrum 5030 contract 3% open screen

Of course, you are not limited to using a fabric from the Spectrum range.  We have access to hundreds of beautiful high performance fabrics and list is growing; we are keen to work with you to find the perfect one.

Still not sure what fabric is right for your project?  Our wealth of knowledge and support is here for you: contact us to have a chat!
